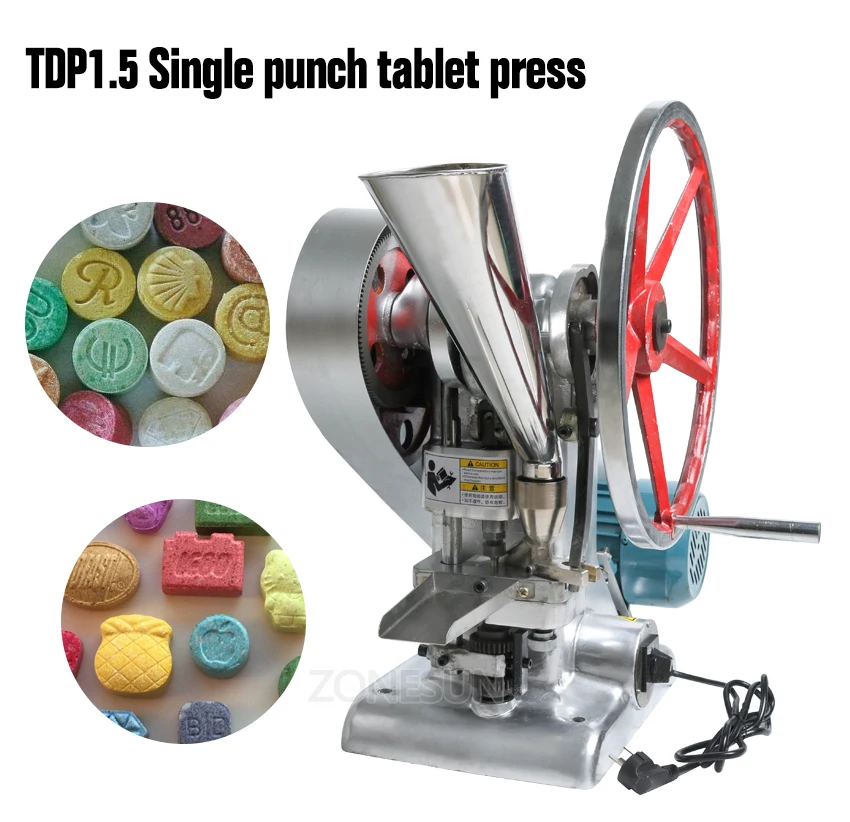

ZONESUN Single Tablet Punch Die Press Machine TDP1.5 Sugar Press Machine Candy Stamping Making Pressing Punching Making Machine
ZONESUN Single Tablet Punch Die Press Machine TDP1.5 Sugar Press Machine Candy Stamping Making Pressing Punching Making Machine
ZONESUN Single Tablet Punch Die Press Machine TDP1.5 Sugar Press Machine Candy Stamping Making Pressing Punching Making Machine
ZONESUN Single Tablet Punch Die Press Machine TDP1.5 Sugar Press Machine Candy Stamping Making Pressing Punching Making Machine
ZONESUN Single Tablet Punch Die Press Machine TDP1.5 Sugar Press Machine Candy Stamping Making Pressing Punching Making Machine
ZONESUN Single Tablet Punch Die Press Machine TDP1.5 Sugar Press Machine Candy Stamping Making Pressing Punching Making Machine

ZONESUN Single Tablet Punch Die Press Machine TDP1.5 Sugar Press Machine Candy Stamping Making Pressing Punching Making Machine

Regular price
$1,409.00
Sale price
$1,409.00

Feature
A. This machine is used to press all kinds of granular raw materials into tablets, as well as is used widely in making small lots of tablets, sugar tablets, calcium tablets and heterogeneous tablets in pharmaceutical, chemical industry, foodstuff factory and science research unit of hospital, etc.

B. It is a type of mini desk-top electric tablet press that is operated by electricity, as well as be waved in hand,  some characteristics of convenient use, easy to maintain,small volume and light weight .The filling depth of material, pressure and thickness of tablets are adjustable.

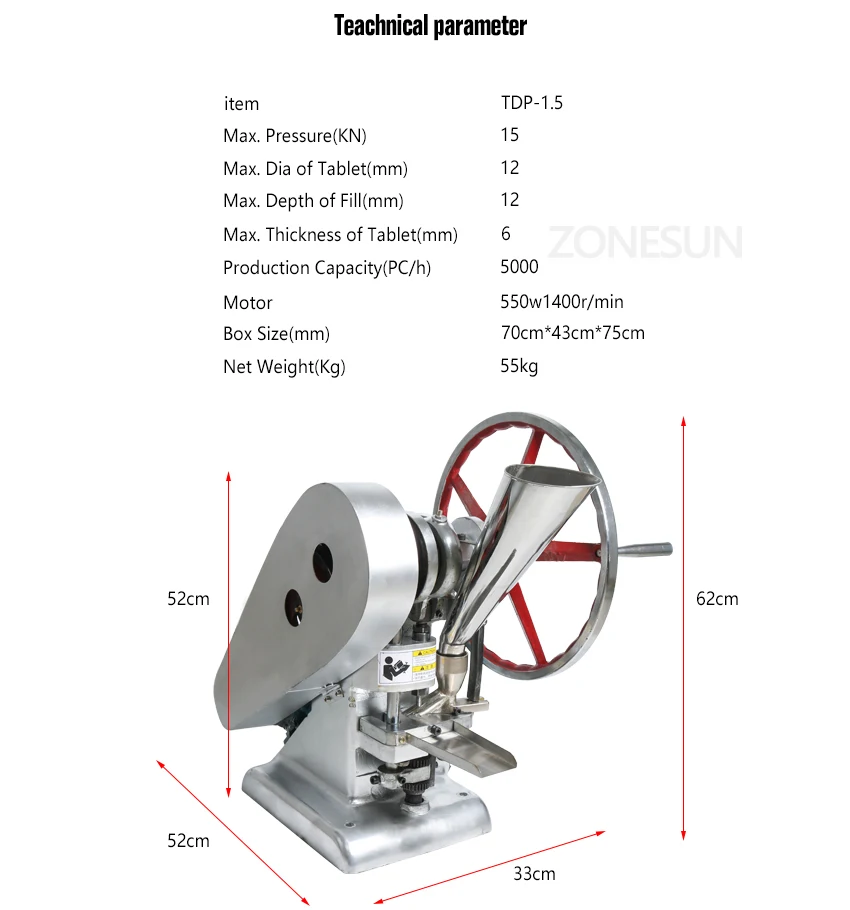

Item

1.5TDP

5TDP

6TDP

Max pressure of tablet

15 kn

50kn

60kn

Max diameter of tablet

12mm

16mm

25mm

Max filling depth (mm)

11mm

12mm

18mm

Max thickness of tablet

6mm

6mm

10mm

Production capacity

4000-6000pcs/h

3600pcs/h

3600pec/h

Power

550w 1400r/min

550w 1400r/min

1.1kw1400r/min

Overall dimension (mm)

580x 450 x625

580 x500 x700

650x 600 x700

weight

40kg

125kg

165kg



This one can use for TDP 0/1.5/3 tablet punch die
Warranty: One year, except for wearing parts
We are specialized in candy tablet punch machine and tablet punch mould ! if you have any qustions. don't hesitate !! contact with us

contact with us email :salestabletpunch@foxmail.com
we will help you to choose one
